JFET FET Transistor Assortment Kit J201, J202, J113, J175, 2SK208-GR, 2SK209, PF5102, 2n5457, 2n5484, PN4391, PN4393 incl. sockets, 45 pcs

JFET Transistor Assortment incl. Sockets J201, J202, J113, J175, 2SK208-GR, 2SK209-GR, PF5102, 2n5457, 2n5484, PN4391, PN4393 Includes: J201, 6 pcs J202, 4 pcs, J113, 4 pcs J175, 4 pcs 2SK208-GR, 4 pcs 2SK209-GR, 4 pcs PF5102, 3 pcs 2n5457, 4 pcs 2n5484, 4 pcs PN4391, 4 pcs PN4393, 4 pcs All Transistors measured on a GM328 test results will show as JFET, except PN4391 will show up as Diode, because the VP pinch-off voltage is -4 to -10V and the test voltage limit is 5 volts. Specifications: J201: Audio and general purpose, high impedance signal sources, N-Ch, VDG 40V, IGF 50mA, VGS MIN -0.3V MAX -0.5V, IDSS MIN 0.2mA MAX 1.0mA J202: Audio and general purpose applications, high impedance signal sources. N-Ch, VDG 40V, IGF 50mA, VGS MIN -0.8V MAX -4.0V, IDSS MIN 0.9mA MAX 4.5mA J113: Analog switching, sample hold circuits, chopper stabilized amplifiers. N-Ch, VDG 35V, IGF 50mA,VGS MIN -0.5V MAX -3V, IDSS MIN 2mA J175: Analog switching sample hold circuits, chopper-stabilized amplifiers. P-Ch, VDG -30V, IGF 50mA, VGS MIN 3V MAX 6V, IDSS MIN -7mA MAX -60mA 2SK208-GR: General Purpose and Impedance Converter and Condenser Microphone Applications, N-Ch, VGDS -50V, IG 10mA, IGSS = −1.0 nA (max) (VGS = −30 V) 2SK209-GR: Audio Frequency Low Noise Amplifier Applications, N-Ch, VGDS -50V, Low noise: NF = 1.0dB, IGSS = −1 nA (max) at VGS = −30 V PF5102: Analog switching, sample, hold circuits, chopper stabilized amplifiers, N-Ch, VDG 40V, IGF 50mA, VGS MIN -0.7V MAX -1.6V, IDSS MIN 4mA MAX 20mA 2n5457: Designed for audio and switching applications, N-Ch, High AC Input Impedance, High DC Input Resistance, VDS 25V, VDG 25V, IG 10mA 2n5485: Designed for RF amplifier and mixer applications, Low Noise, Low Leakage, N-Ch, VDG 25V, VGS 25V, ID 30mA, IG 10mA, IDSS min 1mA PN4391: Analog switching, sample hold circuits and chopper stabilized amplifiers, >N-Ch, VDGe 30V, IGF 50mA, VGS MIN -4V MAX -10V, IDSS MIN 50mA MAX 150mA PN4393: Analog switching, sample hold circuits and chopper stabilized amplifiers. N-Ch, VDG 30V, IGF 50mA, VGS MIN -0.5V MAX -3V, IDSS MIN 5mA MAX 30mA Sockets: 40 pcs round sockets, 15 pcs square sockets

• QUANTITY: 45 pcs: J201 6 pcs, J202 4 pcs, J113 4 pcs, J175 4 pcs, 2SK208-GR 4 pcs, 2SK209-GR 4 pcs, PF5102 3 pcs, 2n5457 4 pcs, 2n5484 4 pcs, PN4391 4 pcs, PN4393 4 pcs. Included are 40 pcs round SIP sockets and 15 pcs square SIP sockets.
• COMPATIBILITY: J201, 2SK208-GR, 2SK209-GR, 2n5457, 2n5484 are pre-soldered to adapters, so they can be used in through-hole layouts, the legs are round pins and fit into included SIP round sockets; J113, J175, PF5102 are standard TO-92 format; J202, PN4391, PN4392 are pre-soldered to adapters, the legs are square shape and fit into included SIP square sockets.
• INFORMATION: 2SK209-GR are identically to the obsolete 2SK117 and 2SK184 while SK208-GR are identically to the obsolete 2SK30A-GR. The rest are SMD equivalents pre-soldered to adapter boards to replace obsolete JFETs in through hole TO-92 format.

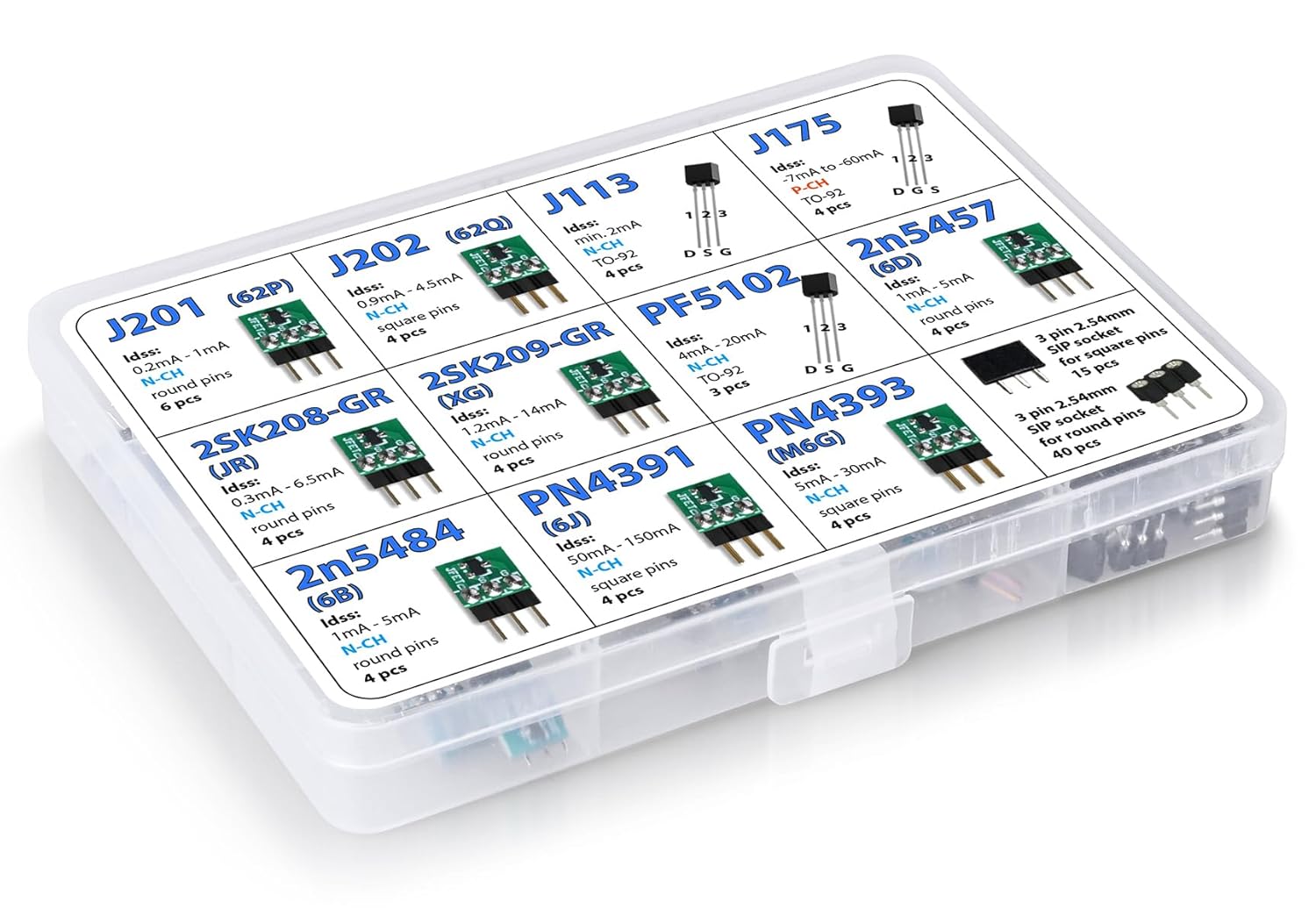

• PACKAGING: All important and useful types of JFET Transistors are sorted accordingly into a handy, labeled box
• SMD ABBREVIATIONS: (printed on the components) SMD J201 = 62P, J202 = 62Q, 2SK208-GR = JR, 2SK209-GR = XG, 2n5457 = 6D, 2n5484 = 6B, PN4391 = 6J, PN4393 = M6G
